Product Name: Natural Gas Online Analysis Cabinet
Field of application: Online analysis and monitoring of natural gas
Application Area: Explosive atmospheres of Zone 1 or Zone 2 Class I hazardous locations, as well as non-hazardous safe areas in petroleum, natural gas, chemical and other industries.
Standards applied: GB/T 25844-2010, GB/T 29812-2013, GB/T 29814-2013, GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T 3836.34-2021, GB/T 28766-2018
It meets the specific environmental requirements of complete online analytical instrumentation systems—such as temperature, humidity, dust protection and explosion protection—thereby providing a safe, stable and reliable operating and running environment for the instruments. This highly integrated analysis cabinet effectively assists natural gas enterprises in monitoring gas conditions during production under complex operating conditions, ensuring compliance with the quality specifications for commercial natural gas. At the same time, it avoids the complications and errors associated with coordination and integration between different disciplines and trades that arise in non-integrated installations, thereby enhancing the system’s reliability.
Basic product information:
Operating conditions:
Ambient temperature: -20 to 50 °C
Ambient humidity: relative humidity ≤ 95%
Altitude: <1000m
Environments free from severe vibrations and mild corrosion
Relevant design parameters:
Power supply: 220V/380V mains/UPS
Explosion-proof rating: The rating is determined according to the customer’s requirements
Protection rating: The level of protection is determined according to the user’s requirements.
Flammable gas and oxygen alarm thresholds are configurable
Material information:
The external wall panels are made of 2mm stainless steel sheets
The interior wall panels are made of 1.5 mm stainless steel sheets
The panel is made of 5mm chequered steel plate
The wall infill is 20 mm thick, providing thermal insulation and fire resistance
Installation information:
Structure: Fully assembled
Dimensions: Customisable
Installation method: Forklift handling, crane lifting
Product specifications:
Analytical instruments:
Basic configuration:

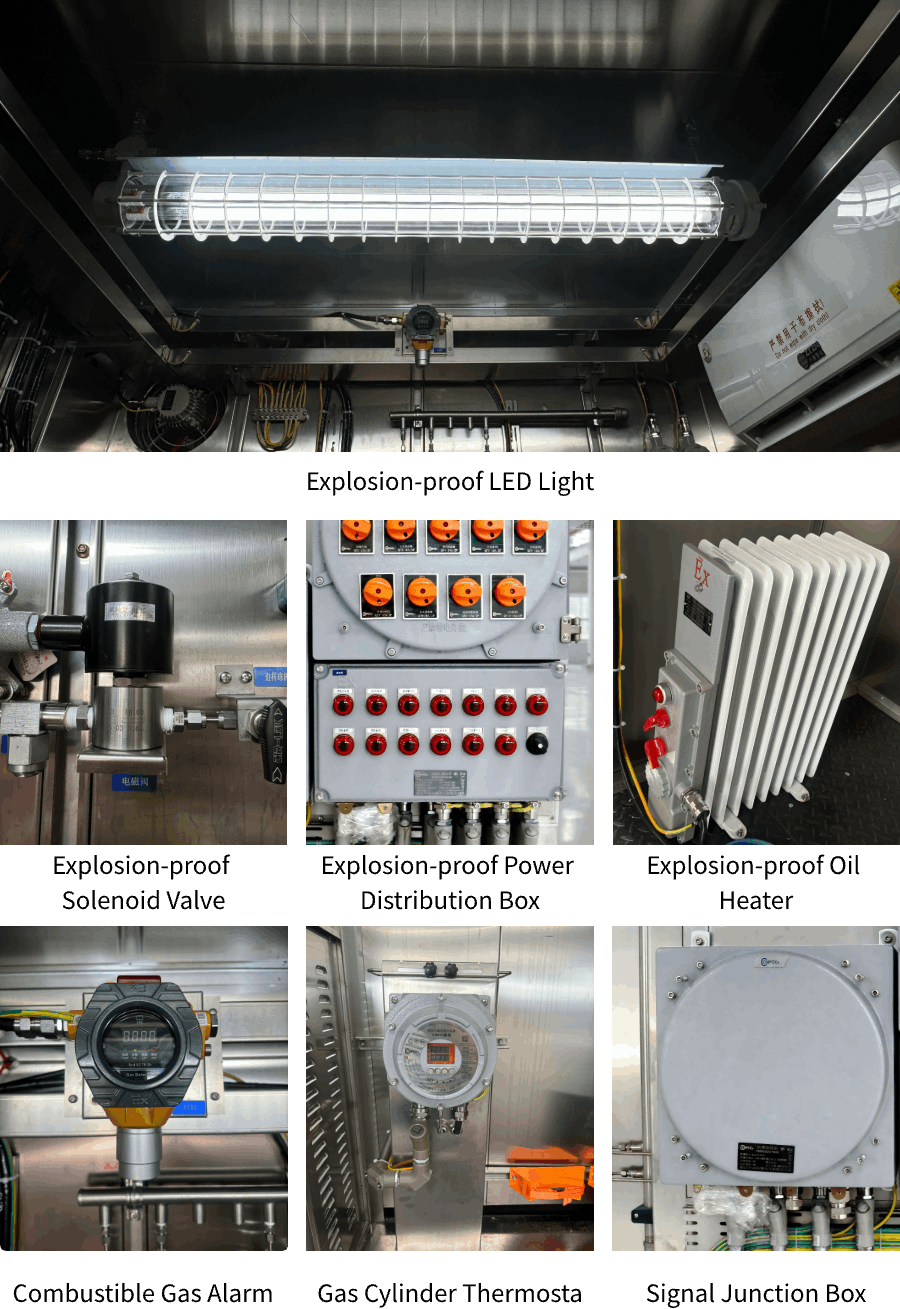

| Configuration Information of Natural Gas Online Analysis Cabinet | |||
| No. | Equipment | Qty | |
| Analytical Instrument | 1 | Chromatograph Analyzer | Optional |
| 2 | Hydrogen Sulfide / Total Sulfur (H₂S/TS) Analyzer | Optional | |
| Basic Configuration | 1 | Cabinet Body | 1 |
| 2 | Explosion-proof Oil Heater | 1 | |
| 3 | Explosion-proof LED Light | 1-2 | |
| 4 | Explosion-proof Solenoid Valve | 1-2 | |
| Safety Alarm Settings | 1 | Combustible Gas Alarm | 1 |
| Optional Customization | 1 | Explosion-proof Power Distribution Box | Optional |
| 2 | Signal Junction Box | Optional | |
| 3 | Gas Cylinder Thermostat / Calibration Gas Constant Temperature Cabinet | Optional | |
| Interface Standards for Natural Gas Online Analysis Cabinet | ||
| No. | Features | Interface Standards |
| 1 | Hydrogen sulphide/total sulphur (H₂S/TS) analyser signal | RS485 |
| 2 | Chromatograph signals | RS485 |
| 3 | Flammable gas alarm signal | 4-20mA |
Suitable operating conditions for Natural Gas Online Analysis Cabine:
Compact in size, suitable for a wide range of spaces with limited room
Highly adaptable to the environment
